Skin Resurfacing Machine

High-efficiency Fractional Laser Skin Resurfacing Device

JY-FL5
✔ 360° Ring Emission Technology;
✔ 360° Flexible Seven-Joint Light Guide Arm;
✔ Multi-Mode Versatility: Intimate health, scars, pigmentation, and aging;
✔ High Energy Output: Up to 80mJ for superior clinical results;
✔ Painless & No Downtime;
✔ 15-Minute Treatment: Fast, convenient;
✔ Proven Safety: Emergency stop, closed-loop cooling.
Quantity:
Contact Now

Next-Generation Fractional CO2 Technology for High-Profit Treatments

The JY-FL5 is an advanced fractional laser skin resurfacing system designed for dermatology clinics, aesthetic centers, and medical spas.
This high-performance fractional skin resurfacing laser utilizes 10,600nm CO₂ technology, 360° ring emission, and multi-mode treatment capabilities to deliver precise and effective skin resurfacing treatments.
As a professional solution for fractional laser resurfacing, it effectively improves skin texture, reduces scars and wrinkles, and supports vaginal rejuvenation treatments, helping clinics expand services and increase profitability.

Product Advantages



✅ Non-Invasive Treatment

This fractional laser skin resurfacing system delivers effective results without surgery or downtime.

✅ Fast Procedures

Fractional laser resurfacing treatments can be completed in just 10–15 minutes.

✅ Long-Lasting Results

Stimulates collagen regeneration and skin remodeling for sustained improvements.

✅ High Safety Profile

Fractional technology ensures controlled thermal effect and minimizes damage to surrounding tissue.

✅ Highest Energy Output

With a maximum output of 80mJ, this system offers one of the highest energy levels in its class, ensuring effective treatments.

✅ Durable & Efficient Design

Key components are imported, and the system is designed for easy maintenance, with only the handpiece needing service.

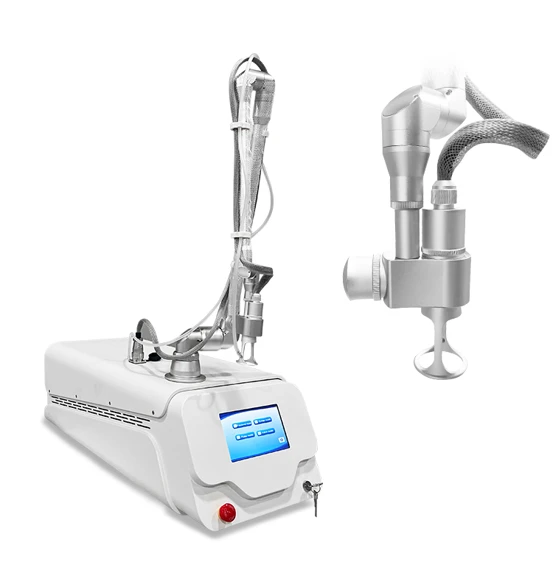

    JY-FL5 CO₂ Fractional Laser — Product Display Images

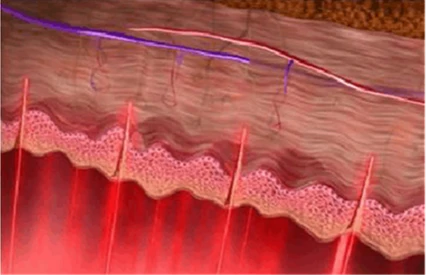

JY-FL5 CO₂ Fractional Laser: Product Function Diagram

Core Technology

✅ 10,600nm Fractional Laser Technology

This fractional laser skin resurfacing system uses a 10,600nm wavelength, which is highly absorbed by water in the skin, enabling precise ablation and collagen remodeling.
It delivers controlled micro-injuries to the skin, triggering natural healing processes and improving skin texture and elasticity.

✅ 360° Gold-Plated Ring Emission Technology

The fractional skin resurfacing laser features a 360° ring emission handpiece, ensuring uniform energy distribution and consistent treatment results.
This technology enhances precision in fractional laser resurfacing procedures, especially for delicate and sensitive areas.

Key Features

Adjustable Scanning Patterns: Supports various graphic patterns (rectangle, circle, hexagon, triangle, etc.) with a maximum scanning area of 20×20 mm².
360° Seven-Joint Light Guide Arm: Highly flexible and precise arm for easy maneuverability during procedures.
Multi-Mode Functionality: Four distinct working modes—Fractional, Private (Gynae), Pulse, and Vulva—for versatile treatment applications.
Intuitive Touchscreen: Large, full-color touch display for easy parameter setting and operation.
Closed-Loop Water Cooling: Internal circulation cooling system ensures stable operation and prevents overheating.
Emergency Stop: Equipped with an emergency stop switch for immediate power cutoff in case of anomalies.

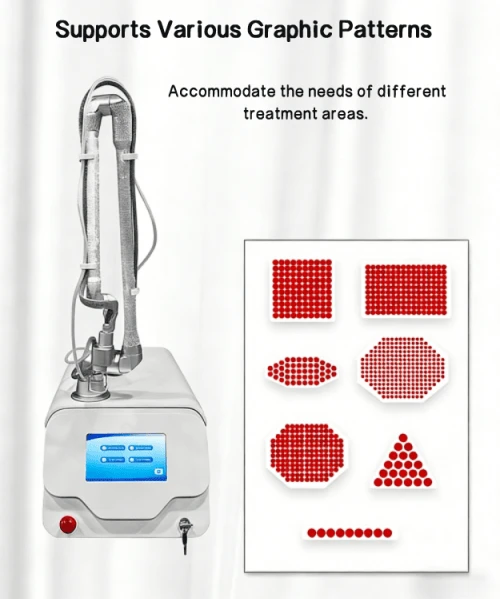

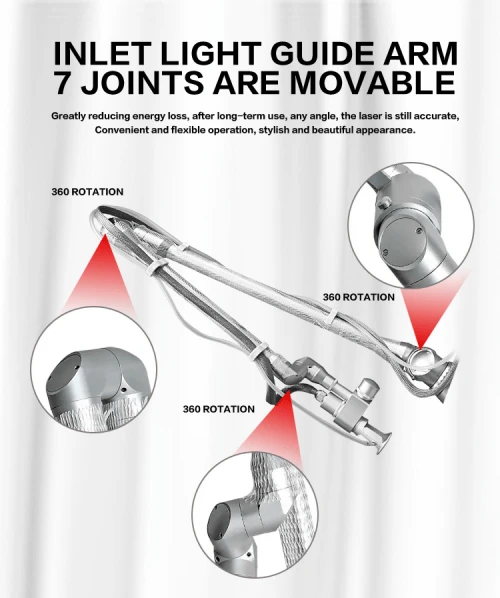

JY-FL5 CO₂ Fractional Laser Key Features — Display Image 1JY-FL5 CO₂ Fractional Laser Key Features — Display Image 2


Treatment Scope & Effects

Dermatological Applications

Intimate Health

  • Scar Revision: Surgical scars, burn scars, and acne scars.
  • Pigmented Lesions: Freckles, sun spots, age spots, melasma.
  • Stretch Marks: Reduction and elimination of striae.
  • Skin Rejuvenation: Pore refinement, skin tightening, and treatment of nodular acne.
  • Vascular Lesions: Capillary hyperplasia and rosacea.
  • Wrinkle Reduction: Both false and true wrinkles.
  • Vaginal Tightening;
  • Aesthetic Whitening;
  • Enhanced Lubrication;
  • Deep Nourishment;
  • Balance & Health

This fractional laser skin resurfacing system helps deliver noticeable and long-lasting clinical results.
JY-FL5 CO₂ Fractional Laser: Product Results Demonstration Image 1JY-FL5 CO₂ Fractional Laser: Product Results Demonstration Image 2

Technical Specifications

ParameterSpecification
Laser TypeEncapsulated DC CO₂ Laser
Wavelength10,600 nm (Far Infrared)
Output Power1W - 60W (adjustable in 1W increments)
Output ModesContinuous, Pulse, Repeat Pulse, Ultra Pulse
Maximum Energy80 mJ
Scanning AreaMax: 20×20 mm² / Min: 0.1×0.1 mm²
Spot Size0.1 mm (minimum)
Aiming BeamRed Semiconductor Laser (650 nm)
Control SystemMicrocomputer-controlled, large-screen color touch display
Optical TransmissionSix-joint articulated light guide arm
Cooling SystemClosed-loop internal water circulation (requires distilled water)
Power Supply220V, 10A, single-phase AC
Dimensions24cm* 34cm* 72cm

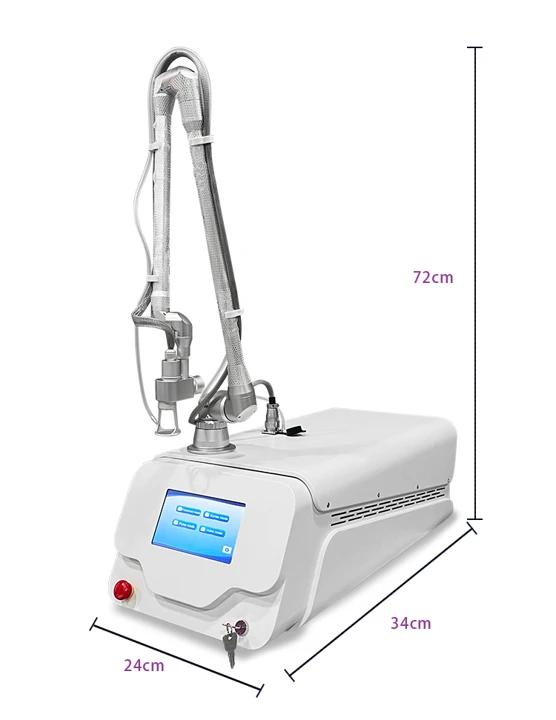

JY-FL5 CO₂ Fractional Laser — Product Dimensions Display

OEM & Customization Services

As a trusted manufacturer of professional aesthetic equipment, Jingyue Beauty provides comprehensive OEM and ODM solutions tailored to your brand’s needs.
  • Brand Identity: Custom logo placement, color schemes, and exterior design;
  • User Experience: Personalized screen UI, language options, and interface layout;
  • Documentation: Bespoke packaging, user manuals, and marketing materials;
  • Technical Configuration: Preset treatment parameters, software adjustments, and international certification support.
Ideal for global distributors, wholesalers, and private label partners looking for a reliable, high-performance portable fractional laser skin resurfacing system that stands out in the market.

Safe & Reliable

The jingyue fractional system is designed with comprehensive safety features, including an emergency stop switch, key switch for operation control, and strict adherence to optical safety protocols. The system provides clear warnings and a troubleshooting guide to ensure safe and reliable operation for clinical use.

Important Safety Operating Procedures

To ensure your safety , please following below instructions:
▸Burn Hazard: The maximum laser power output of this device can reach 60W. Even without focusing, it can cause third-degree burns. Utmost caution and adherence to safety protocols are mandatory.
▸Eye Safety : Reflection and Direct Exposure: Never look directly into the red semiconductor aiming beam, as it can cause eye injury even without causing a burn. Avoid directing the laser towards reflective surfaces to prevent harm from reflected or scattered beams.
▸Flammability and Explosion Risk: Do not place or store flammable or explosive materials in the vicinity of the equipment.

FAQ – Fractional Skin Resurfacing Laser Machine

1. Is the treatment painful?

No. The procedure is virtually painless and requires no anesthesia. Most patients describe only a mild warming sensation.

2. How long does a session take?

A full treatment session is completed in just 10–15 minutes, making it convenient for busy schedules.

3. Is there any downtime?

None. You can return to your normal activities immediately after the procedure.

4. How soon will I see results?

Many patients notice improvements after the first session, with optimal results developing over the following weeks as collagen remodeling continues.

5. How long do results last?

Results are long‑lasting due to deep tissue regeneration. Maintenance sessions may be recommended based on individual needs.
