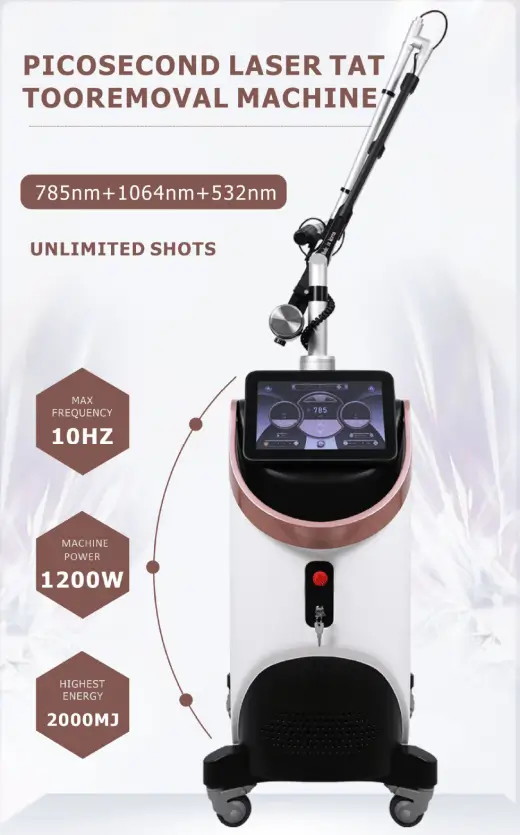

Q Switch Nd Yag Laser Tattoo Removal Machine

JY-TR5

✔ Triple Wavelength Options: 532nm, 1064nm, 785nm;
✔ High Energy Output: 100-2000mj adjustable;
✔ Adjustable Spot: 2-10mm adjustable;
✔ Adjustable Frequency: 1-10Hz adjustable;
✔ Dual Cooling System;
✔ User-Friendly Interface;

Quantity:

Contact Now

Advanced Q Switch Tattoo Removal Machine for Pigmentation & Skin Rejuvenation

JY-TR5 Vertical Picosecond Laser Machine

TheQ Switch Nd Yag LaserTattoo Removal Machine is a next-generation aesthetic device designed for fast, safe, and highly effective tattoo removal and pigmentation treatment.

Powered by advanced picosecond technology, it delivers ultra-short pulse durations to shatter pigment into microscopic particles, enabling faster elimination by the body.

✔ Fewer treatment sessions;

✔ Minimal discomfort;

✔ Superior skin clarity;

Perfect for beauty clinics, dermatology centers, and distributors looking for high-performance laser equipment – whether you currently use a q switch laser tattoo removal machine or want to upgrade to the latest innovation.

Key Features of Jingyue Q Swith Tattoo Removal Machine

✅ Triple Wavelength Precision

Equipped with 532nm, 1064nm, and optional 785nm wavelengths. Target everything from deep tattoos and dermal pigments to superficial spots and skin rejuvenation—all in one q switch tattoo removal machine.

✅ High Power, Faster Results

Delivers up to 2000mJ of energy. This intense power shatters pigment into microscopic dust, significantly reducing the number of treatment sessions compared to traditional lasers.

✅ Fully Customizable Treatments

Adjust spot size (2-10mm) and frequency (1-10Hz) with ease. Whether treating a tiny mole or performing a full-face carbon peel, you have total control for maximum safety and efficacy.

✅ Advanced Dual Cooling System

Features both air and water cooling. This prevents overheating, ensures stable performance during long procedures, and extends the lifespan of the machine's core components.

✅ Smart 12.1"Touchscreen

User-friendly interface with real-time monitoring of energy, frequency, and water temperature. The parameter presets allow you to save favorite settings for efficient, error-free treatments.

Treatment Applications of Jingyue Q Switch Nd Yag Laser

The q switch nd yag laser tattoo removal machine
is ideal for a variety of aesthetic treatments:

✅ Tattoo Removal:

Black, brown, dark blue, red, pink, and light-colored tattoos
Eyebrow tattoos, eyeliner, and lip liner

✅ Pigmentary Conditions:

Freckles, age spots, chloasma, nevus of Ota, cafe-au-lait spots
Post-inflammatory hyperpigmentation
Traumatic pigmentation

✅ Skin Rejuvenation:

Whitening, brightening, and"porcelain doll"effect
Acne scar reduction, pore tightening, and carbon peeling

Vertical Picosecond Laser Machine: Product Application Showcase

Laser Handpieces – Versatility at Your Fingertips

Jingyueq switch nd yag laser tattoo removal machine features interchangeable laser tips, each optimized for specific wavelengths and treatment goals.

Key Handpieces:

✅ 785nm honeycomb picosecond probe: Black face doll head, skin rejuvenation and whitening, shrinking pores;

✅ 1064nm probe: Mainly for spots (gray, black, dark blue epidermal spots and dermal spots) and traumatic pigmentation and freckles, etc.

✅ 532nm probe: Mainly for the treatment of red or brown tattoos, eyebrow tattoos, lip liner, eyeliner. It can also effectively reduce red or brown birthmarks and various shallow spots. Adjustable focus;

Suggested Treatment Parameters
Treatment	Wavelength	Energy (mJ)	Spot (mm)	Freq (Hz)	Clinical Endpoint
Deep Cleansing	785nm	200–1400	7–8	5–8	Slight warmth
Tattoo (Dark Colors)	1064nm	200–1000	3–6	2–3	Whitening of tattoo
Tattoo (Light Colors)	532nm	200–1000	4–6	2–3	Whitening of tattoo
Epidermal Spots	1064nm	200–1000	3–6	1–3	Graying of treated area
Dermal Spots	1064nm	200–1000	4–8	1–3	Redness at treatment site
Skin Rejuvenation	785nm	200–1400	6–8	5–8	Mild redness

Technical Specifications of Jingyue Q Swith Tattoo Removal Machine

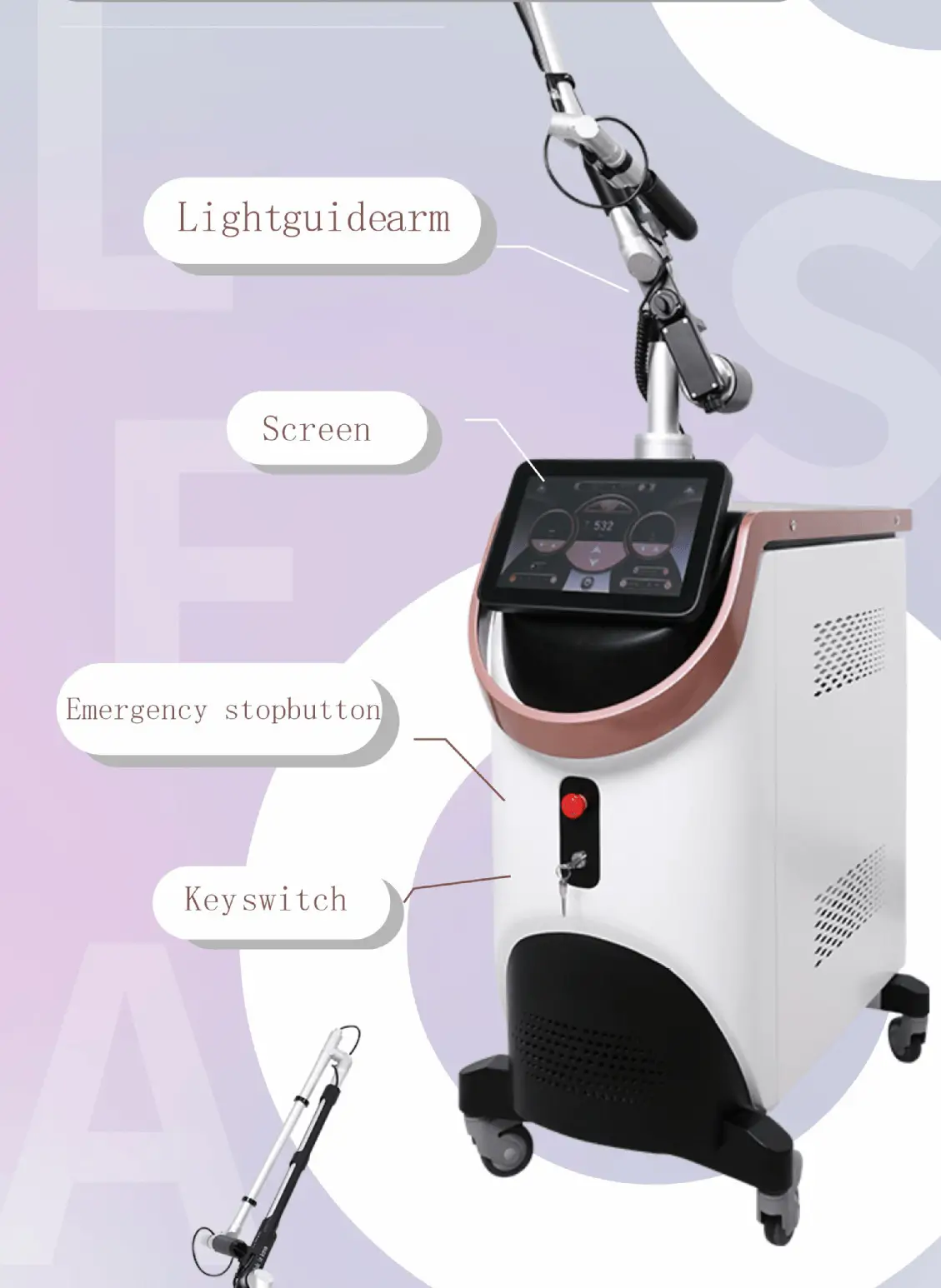

Vertical Picosecond Laser Machine — Product Detail Images

Parameter	Details
Display	12.1-inch Touch Screen
Laser Type	ND:YAG
Wavelengths	532nm, 1064nm (785nm optional)
Pulse Width	2000 ps
Maximum Energy	2000mJ
Working Frequency	1 – 10 Hz (adjustable)
Spot Diameter	2–10mm (adjustable)
Cooling System	Air cooling + water cooling
Power Supply	220V / 110V (optional)
Machine Power	1200W
Net Weight	127kg
Package Dimensions	113 x 58 x 119.5 cm

Why Choose Jingyue as Your Trusted Beauty Equipment Manufacturer

Jingyue: A Trusted Manufacturer of Beauty Machines

✅ Factory Direct Pricing

We are a professional manufacturer of aesthetic laser equipment. By choosing us, you eliminate the middleman and receive factory-direct prices, high-quality machines, and maximum value for your investment.

✅ CE & ISO Certified Quality

All our machines are manufactured in compliance with international standards. We prioritize safety, durability, and performance, ensuring you receive a reliable and certified device.

✅ 12-Month Warranty & Technical Support

We stand behind the quality of our products. Every machine comes with a 12-month warranty on the main unit and a 3-month warranty on the handpiece. Our technical team is always available to assist you with installation, operation, or troubleshooting.

✅ Global Shipping & Fast Delivery

We offer secure and fast worldwide shipping. All machines are carefully packed in shockproof air boxes to ensure they arrive safely and ready to use.

✅ Free Training & Guidance

Not sure how to operate the machine? We provide free user manuals, operation videos, and remote guidance to help you and your staff get started with confidence.

✅ Trusted by Clinics Worldwide

Join hundreds of satisfied customers—from beauty salons to dermatology clinics—who trust our machines to deliver safe, effective, and professional results.

We help distributors and clinics build competitive advantage in the aesthetic equipment market.

✅ Proven Results, Trusted by Professionals

From dermatology clinics to medical spas, this Vertical Picosecond Laser Machine is the choice for practitioners who demand quality, reliability, and results. Backed by positive feedback from both clinicians and patients, this device is a smart investment for any aesthetic practice.

OEM/ODM Service--Build Your Own Brand

Customized Solutions for Your Business Needs

We offer comprehensive OEM/ODM services to help you establish a unique brand identity.

Fromcustom casing colors and logo placement to tailored interfaces and packaging, we handle the entire production process. You focus on marketing and sales, while we deliver a high-quality, certified, white-label machine that carries your name.

Whether you're a startup clinic or an established distributor, we provide the manufacturing expertise to turn your vision into reality.

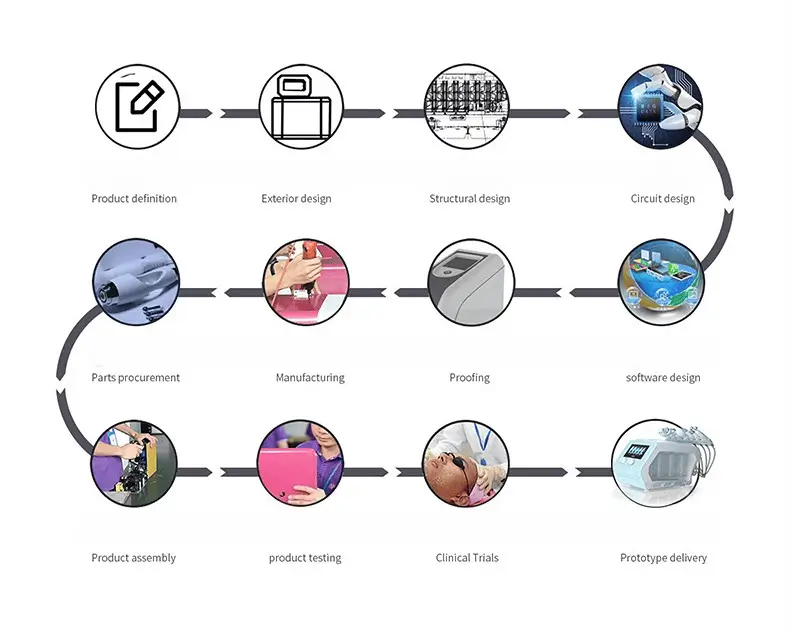

Vertical Picosecond Laser Machine Customization Process Flowchart

Warranty & Support

Main Unit Warranty: 12 months
Handpiece Warranty: 3 months
Free repairs for non-human damage during warranty period
Post-warranty service available (parts and labor charged accordingly)
For technical support, spare parts, or service inquiries, please contact our authorized service center. Do not attempt to open or repair the unit yourself—risk of electric shock and optical misalignment.

Become a Distributor or Request a Quote Today

Upgrade your clinic treatment capability with Jingyue q switch nd yag laser tattoo removal system.
Contact us now to receive pricing, catalog, and partnership details.

FAQs

Q1: Will the spots return after treatment?

Jingyue q switch nd yag laser tattoo removal machine breaks down melanin into powder for natural metabolism. However, factors like UV exposure, hormonal changes, or poor skincare may stimulate new pigmentation. Sun protection and hydration are essential.

Q2: Is the treatment painful?

Most patients feel a mild tingling or warm sensation. Sessions are quick—full face treatments take only 15–20 minutes.

Q3: Will my skin become thinner?

No. Our q switch nd yag laser tattoo removal machine's pulse is 1000x faster than traditional lasers, so it targets only pigment without affecting surrounding tissue.

Q4: How many sessions are needed to removal tattoos?

Typically 6 sessions per course, depending on the type and depth of pigmentation. Intervals range from 30–90 days. For more about the sessions required, please browse: How Many Sessions To Remove Tattoo? The Ultimate Guide to Laser Tattoo Removal

Q5: Is there any downtime?

Minimal to none. Some patients may experience slight redness that fades within hours. No scabbing or peeling in most cases.
